Product Description

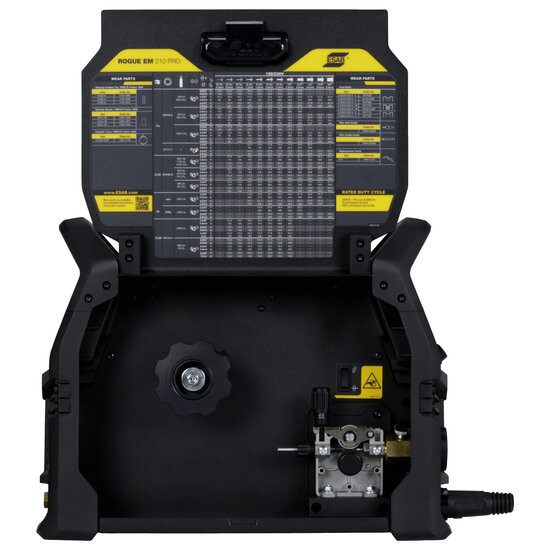

Esab Rogue EM 210 PRO
ESAB Rogue EM 210 PRO is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.
With a weight of only 16.9 kg (37.3 lbs), dual voltage 120/230V single-phase input and compatibility with 11 kVA (10 kW) generators, this system provides maximum flexibility and portability, both in the shop and in the field.
- Full feature MIG/MAG machine for Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored

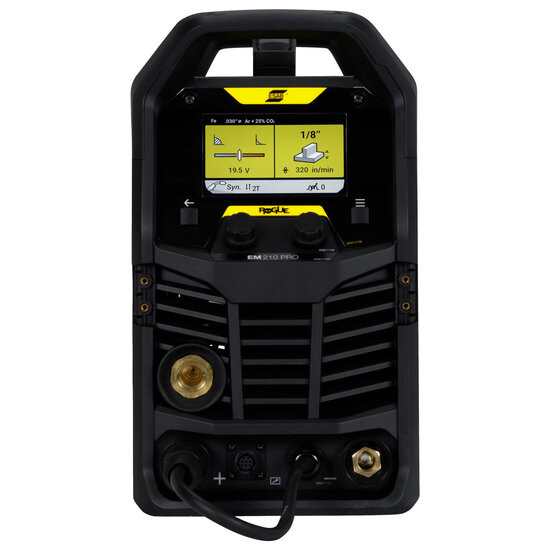

- Intuitive 5.0 in TFT screen offers clear views with direct interaction
- Synergic Weld Programs – full range of welding parameters, 0.5 – 8.0 mm (0.020 – 0. 30 in.) with single knob control
- Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)
- Unique rugged industrial design – supporting multiple lift points and cable management
- Arc Dynamics – fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
- Jobs – 10 memory save/recall function
- Spool Gun Ready – Rogue automatically configures set up when spool gun is connected (Spool gun sold separately)
- Multi-language display – configure the display to 1 of 29 languages
- Energy Save Mode – after 2 minutes of inactivity the unit will enter this state to reduce power consumption
- IP23S rated for indoor/outdoor use
-
Specifications Input Voltage 230 VAC ±10 %, 1 Φ, 50/60 Hz
120 V ±10 %, 1Φ, 50/60 HzGMAW Welding Output 100 A19.0 V (120 V) @ 25 % Duty Cycle
82 A18.1 V (120 V) @ 60 % Duty Cycle
63 A17.2 V (120 V) @ 100 % Duty Cycle
210 A24.5 V (230 V) @ 25 % Duty Cycle
136 A20.8 V (230 V) @ 60 % Duty Cycle
105 A19.2 V (230 V) @ 100 % Duty CycleSetting Range 10.4-27.2 V (10-210 A) Current Range 10-210 A 10.4-27.2 V Wire Feeder Specifications 2.0-16.5 m/min ( 75-650 in./min ) Open Circuit Voltage 78 VDC Wire Diameter
Aluminum
Mild Steel
Flux Cored
Stainless Steel
0.8-1.2 mm ( 0.030-0.045 in. )
0.6-1.0 mm ( 0.023-0.035 in. )
0.8-1.2 mm ( 0.030-0.045 in. )
0.8-1.0 mm ( 0.030-0.035 in. )Max Spool Diameter 100 & 200 mm ( 4 & 8 in. ) Power Factor at Maximum Current 0.99 Efficiency at Maximum Current 80 % Energy Save Mode <50 W Supply Plug NEMA 6-50P Operating Temp -10 - +40 °C MCableX 14/2, 3 m (10 ft) Rated kVA 6.2 kVA (230 V)
2.4 kVA (120 V)Recommended Generator 6.0 kW (120 V)
10 kW (230 V)Enclosure Class IP23S Certification Mark cETLus Dimensions, L x W x H 548 x 229 x 406 mm ( 23.2 x 8.7 x 15.2 in. ) Weight 16.9 kg ( 37.3 lbs )
