Product Description

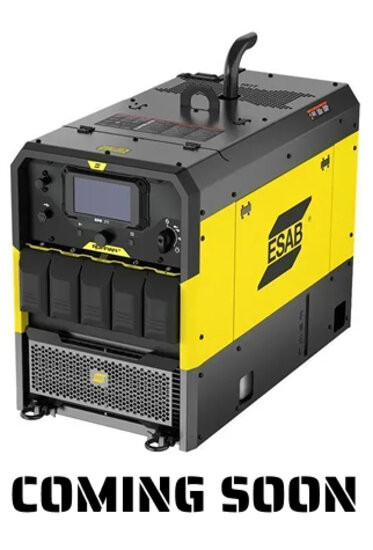

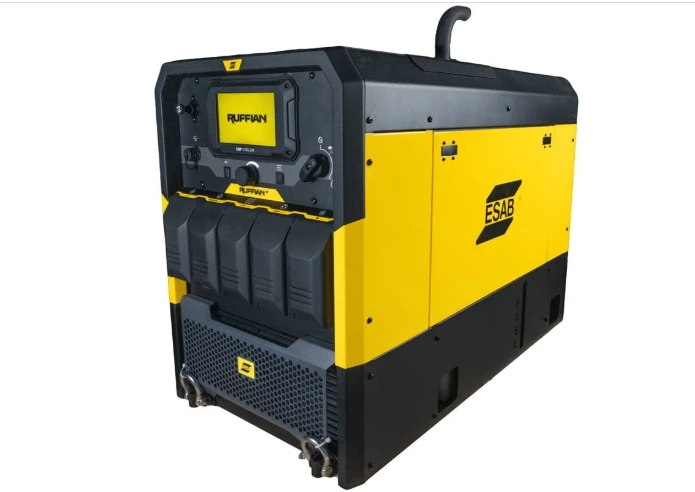

Esab Ruffian EMP 270G EDW
The Ruffian EMP 270G is the next generation of ESAB engine driven welders. A lightweight, compact and powerful combination of generator and multiprocess welder. This Ruffian comes with a unique inverter full of features to bring welding quality to the next level. Delivers up to 270 A with 100% duty cycle and its integrated generator can deliver up to 11 kW throughout 120 VAC and 240 VAC auxiliary outlets, thanks to the reliable 23.5 HP Kohler® gasoline engine.

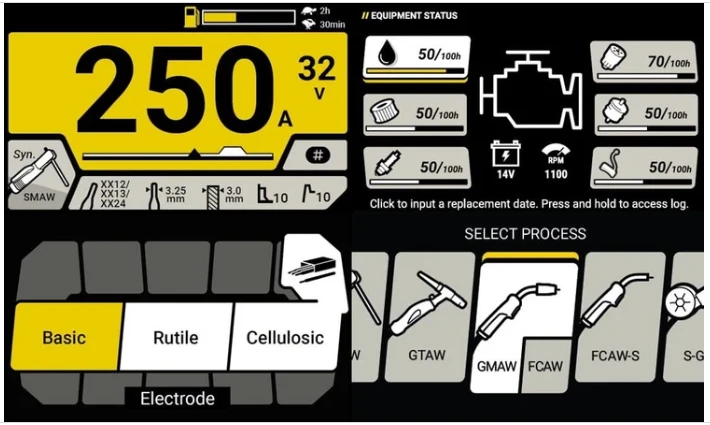

Ruffian is equipped with a tough 7 in. TFT colorful digital display, which not only allows user to easily select welding parameters through intuitive menus but also drives settings to deliver optimized welds through accurate software.
Strong focus on simplified usage and maintenance. The user has full visibility of each component and precise information about parts replacement timing, to extend the overall equipment lifespan.
The Ruffian's 270 amps of welding output and peak 11,000 watts of AC auxiliary power can be used simultaneously, without sacrificing welder or generator power. The inverter design of the welder produces a smooth, stable welding arc over a wide range of welding processes. Arc Force Control ensures reliable arc starts, even when using E6010 and E7018 welding electrodes. The AC generator features four 20 amp, GFCI duplex receptacles, one 50 amp 240 volt receptacle and one 50 amp 120/240 volt hybrid receptacle. Generator power can be used for tools, lights and even for powering welders and plasma cutters. The Ruffian ES 270G comes complete with an eleven gallon fuel tank, 7-inch TFT digital display and ESAB's 3-year warranty.
- Trusted CH730 Kohler ® 23.5 HP gasoline engine
With exceptional power and reliability - Independent auxiliary generator output from the welding current
Allowing simultaneous use of electrical tools and even other welders or plasma cutters - Multiple receptacles available
Four 120VAC 20A (GFCI), one 240VAC 50A (6-50R) and one 120V/240V 50A (hybrid), all protected by circuit breakers and rubber covers - Direct spool gun connection
Tweco® Spool Gun 250 compatible. - Reduced footprint
Perfect for mounting on service trucks - Tested in the harshest environments
To meet the highest global standards - 3-year warranty
By ESAB on welder/generator
By Kohler on engine
| Specifications | |
|---|---|
| MIG (GMAW) / Flux Cored (FCAW / FCAW-S) Welding Output | 260 A27.0 V @ 100 % Duty Cycle |
| Stick (SMAW) / Gouging (CAC-A) Welding Output | 235 A29.4 V @ 100 % Duty Cycle |
| TIG (GTAW) Welding Output | 270 A20.8 V @ 100 % Duty Cycle |
| Setting Range GTAW (TIG) SMAW/MMA (Stick) GMAW (MIG/MAG) |
20.0-270 A (10.8-20.8 V) 20.0-270 A (20.8-26 V) 30.0-270 A (15.5-26 V) |
| Open Circuit Voltage | 94 V |
| Operating Temp | -10 to +40°C °C ( +14 to +104°F °F ) |
| Engine Type | Kohler, Command PRO CH730, |
| Power | 23.5 hp @ 3750 rpm |
| Cooling | Air |
| Fuel | Gasoline |
| Enclosure Class | IP23S |
| Dimensions, L x W x H | 955.3 x 505.0 x 836.2 mm ( 37.6 x 19.9 x 32.9 in. ) |
| Weight | 192.8 kg ( 425.0 lbs ) |
