Product Description
DETAILS

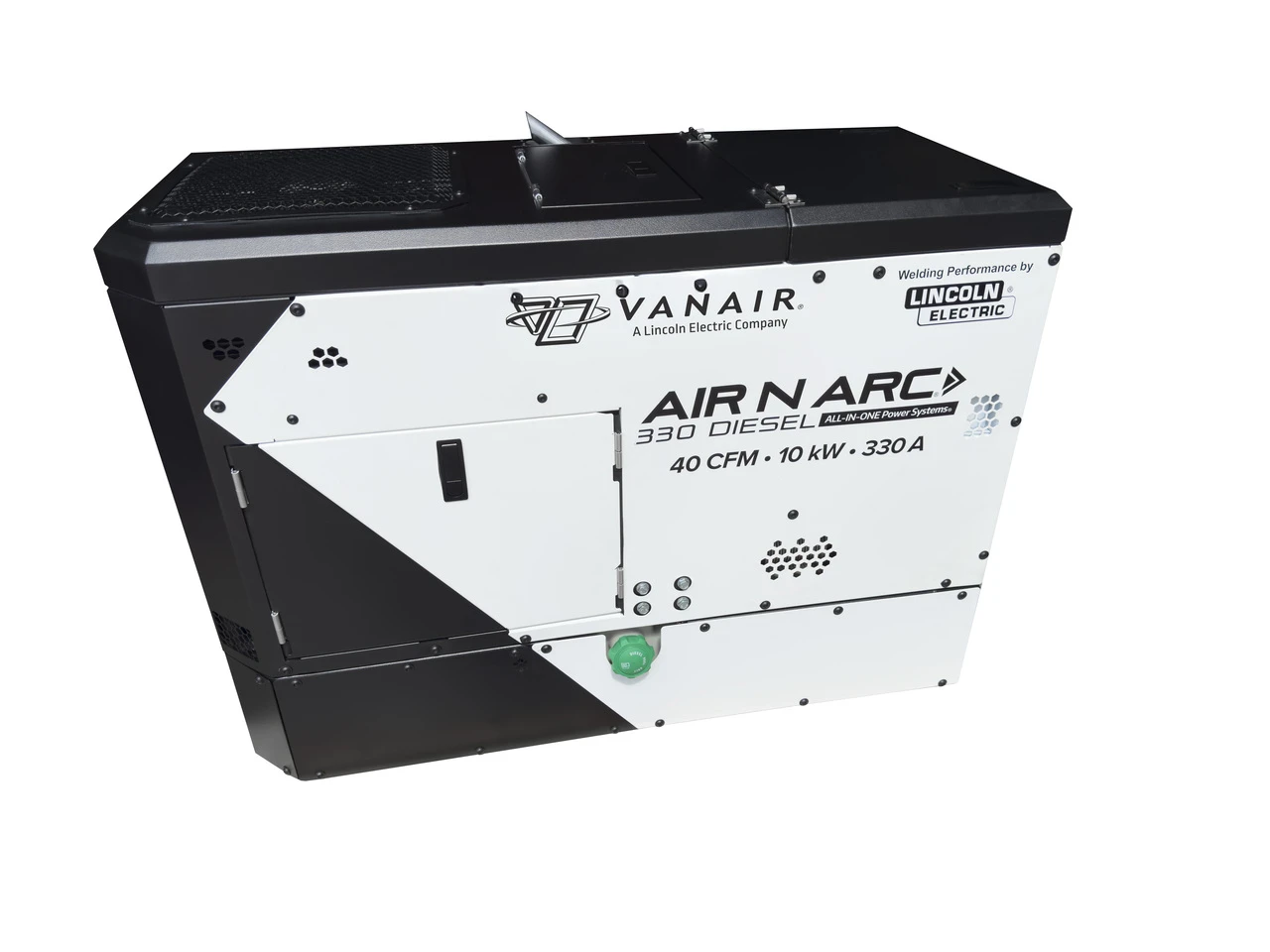

Empower your workday with the Air N Arc® 330 Diesel ALL-IN-ONE Power System®, boasting cutting-edge Lincoln Electric welding technology. This advanced system redefines versatility, efficiency, and reliability. It seamlessly integrates an impressive 40 CFM of air power, 10,000W of AC electric power, battery booster, battery charger, and a Lincoln Electric® 330A DC multi-process arc welder. This machine boosts productivity, optimizes truck bed space, and reduces weight while ensuring convenience and safety through a single control panel. With the Air N Arc® ALL-IN-ONE Power System®, you’re ready for any workday challenge.
Features
- AIR COMPRESSOR: Vanair® rotary screw compressor with output of 40 CFM at 150 PSI (up to 175 PSI). Made in the USA.
- GENERATOR: AC brushed generator with 10kW of Continuous Output, 120/240V, 60Hz, single phase with smooth output for minimal distortion.
- WELDER: DC multi-process welder with Chopper Technology® enabling CC (Stick, Gouging, & TIG) 35-330A welding processes and CV (MIG & FCAW) 14-40V welding processes.
- BATTERY BOOST / CHARGE: 330A, 12/24V (Boost), 50A, 12/24V (Charge), and up to 50A available to charge back to a vehicle chassis.
- SINGLE REMOTE CONTROL PANEL: Electronic high‑visibility LCD display with button controls, dual 120V GFCI receptacles, single 240V 50A receptacle, and a selector knob for easy navigation and mode selection.
- COLD WEATHER PACKAGE: Integrated 12VAC weather package.
- ENGINE: 24.8HP Kubota®, 3-cylinder, water-cooled diesel engine, electronic variable speed, and Tier 4 Final emission compliance.
- EV CHARGING: The 240V receptacle is compatible with Vanair® EPEQ® Level 2 EV Charger.
Disclaimer
Application
| Typical Application | Construction Railroad Maintenance Construction & Field Erection General Fabrication Heavy Equipment Heavy Fabrication Maintenance & Repair Power Generation Repair Welding Structural Fabrication Structural Welding |
Warning -
Cancer and Reproductive Harm -
Engine Driven Welders
| Single Phase Auxiliary Output | 2 @ 120V 1 @ 240V |
| Auxiliary Output Frequency | 60 Hz |
| Engine Brand & Model | Kubota D902 |
| Engine Description | Liquid cooled, Tier 4 Final compliant, with high temperature and low oil pressure shut-offs |
| Air Compressor Protections | Safety Relief Valve High Temp Shutdown |
| Generator Output | 11.5 kW Peak, 10.0 kW Continuous, 60 Hz, AC Power |
