Product Description
Frontier® 400X Pipe (Kubota®)
Dedicated Pipe Mode Designed and tested specifically for cellulosic root downhill pipe welding - the Pipe Mode produces the iconic, smooth DC Generator arc that has been loved by the cross-country pipe industry.
| Kubota D1503 Engine Specifications | |
| Make / Model | Description |
| Kubota® D1503-M EPA Tier 4 Final Compliant (K3484-2, K3485-2) | Cylinder, 24.8 HP (18.5kW) Water Cooled Diesel Engine |
| Capacities | Displacement |
|
Fuel: 20 US gal. (75.7L) |
91.0 cu in. (1.5L) Bore / Stroke 3.27'' x 3.64'' 83mm x 92.4mm |

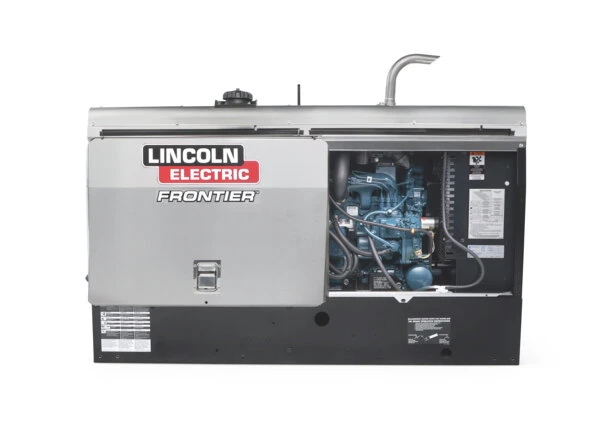

Frontier® 400X Pipe powered by a 24.8 hp Kubota® D1503-M diesel engine.
DETAILS
The Frontier® 400X Pipe is an advanced engine-driven welder/generator offering best-in-class arc performance, coupled with the latest welding innovation for maximum versatility on the jobsite. The machine’s multi-process capability provides optimized CC and CV modes, plus specialized modes to support mechanized equipment and advanced GMAW applications including STT® and pulse welding. Included only in the Frontier 400X Pipe is a new, specialized Pipe mode made to produce the classic DC-style arc for downhill pipe applications.
The machine features an industry-first, next-gen display with enhanced operator-focused features, such as save and recall weld parameter memories, maintenance reminders, and optional PIN user authorization. Additional features include Auto-Stop/Start technology to help reduce engine idling, save on fuel costs, and avoid excessive wear, along with CrossLinc® Technology, which allows adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality. The machine now features an extended oil service interval of up to 400 hours to reduce maintenance frequency, upgraded GFCI modules with integrated, replaceable receptacles for improved durability and protection, and a new rotary start switch that delivers faster, more reliable starts. A spool gun weld setting has also been added to the weld menu to expand welding capability and simplify setup. Experience the latest in welding innovation.
Features
- Full Job-Site Versatility – Offers up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Features optimized CC and CV modes, specialized modes to support mechanized and pulse welding, and a dedicated Pipe mode with DigFX™ technology to produce the iconic, smooth DC-style arc for downhill pipe welding.
- All Day Auxiliary Power – Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
- Next-Gen Display – Bright, durable 7 in. digital user interface for unmatched machine control - Save and recall memories, receive maintenance reminders, and enable PIN authorization.
- CrossLinc® Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter. Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.
- Run Longer and More Efficient – Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto-Stop/Start feature, designed to prevent excessive idling to help save on fuel costs, avoid unnecessary engine wear, and extend time between required maintenance.
- Field-Proven Diesel Engine – Powered by a 24.8 hp, naturally aspirated Kubota® diesel engine to provide extremely smooth and quiet operation while meeting EPA Tier 4 Final compliance.
- Trusted Reliability – Engineered tough to withstand harsh conditions and backed by trusted industry support and 3-year warranty.
Optimized Arc Performance & Versatility When you see Lincoln Electric on the side of an engine drive, you know you are getting the best arc performance on the market. Now we’ve taken that to the next step in the Frontier, optimizing our weld modes to deliver smooth, stable arc performance specifically tailored for your application.
Embedded Weld Modes Optimized for:
• SMAW • GMAW¹ • FCAW-S¹ • FCAW-G¹ • Touch-Start TIG • Scratch-Start TIG • Pulsed TIG • Carbon Arc Gouging
Perfectly Tuned For Field Welding With embedded CrossLinc capabilities, the Frontier provides the ultimate versatility in the field - allowing you to easily tap into Lincoln Electric’s rugged portable wire feeders to bring our industryleading wire weld processes to the field. Compatible Wire Feeders: • LN-25X® • Activ8X® • Activ8X® Pipe™ Compatible Spool Gun: • Magnum® PRO 250LX GT Advanced Processes • Pulsed MIG - Pulse optimized for field welding applications • STT® Field - Industry-proven root pass process- now tailored for the field¹ Field Mechanized Capabilities Designed to easily support field mechanized solutions, Frontier engine drives easily communicate with Lincoln Electric’s APEX® and HELIX® mechanized components for unparalleled performance and quality in orbital and flat track applications. Compatible Mechanized Solutions : • APEX 30 Series Control Systems • HELIX M85 Weld Head • HELIX M45 Weld Head Mechanized Processes: • Orbital and Flat Track • GMAW • FCAW
