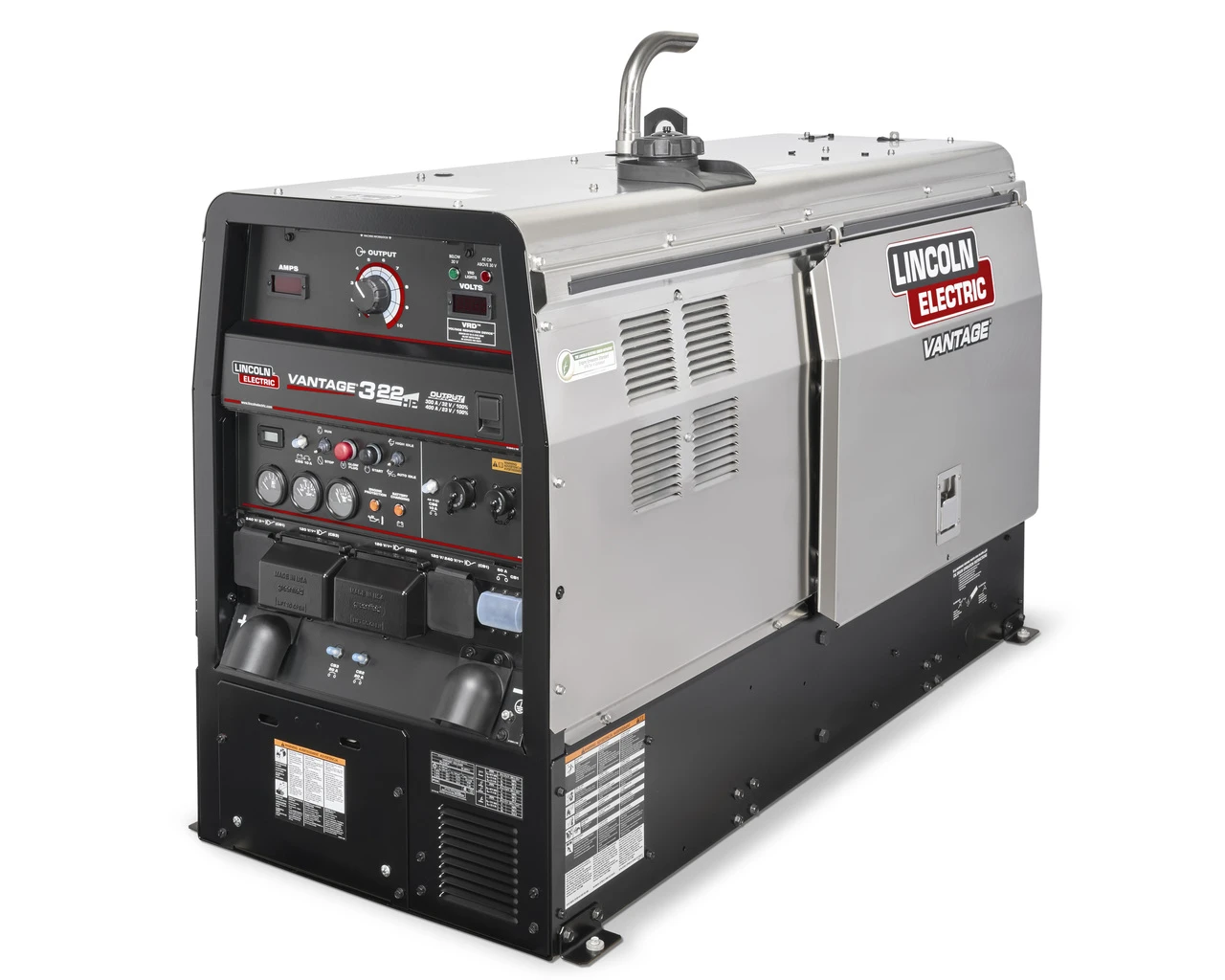

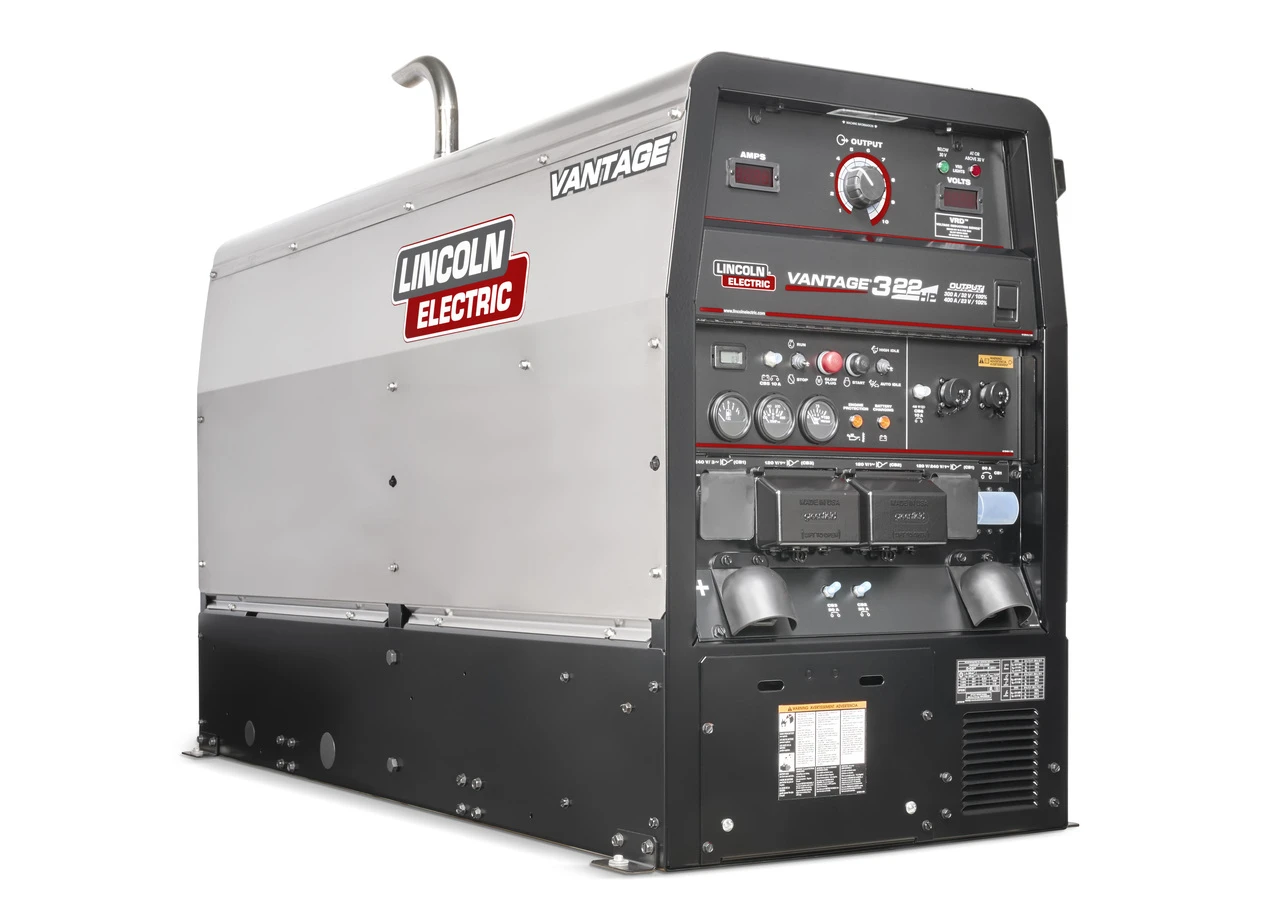

VANTAGE® 322 ENGINE DRIVEN WELDER (KUBOTA®)

MSRP: $13,281.00
$12,137.02
(You save $1,143.98 )
(No reviews yet) Write a Review
SKU:
K2409-5

VANTAGE® 322 ENGINE DRIVEN WELDER (KUBOTA®)

FREE SHIPPING!

Compact. Multi-Process. Excellent Value.

The quiet, compact Vantage® 322 welder is an ideal choice for construction teams, pipe rig owners and rental fleet managers. Its Multi-Process capabilities allow for many different applications, all from just one machine. Select the Vantage 322 for its compact build, multi-process capabilities, and excellent value.



Compact Case With Stainless Steel Enclosure

  • Small size and light weight is suitable for many pickup trucks. Standard stainless steel roof, side panels and engine-access door deliver added protection and durability.


Multi-Process Welding

  • Select one of five Process Modes, including CC-stick up to 3/16 in. (4.8 mm), downhill pipe (for stick), DC Touch Start TIG®, CV-wire up to 5/64 in. (2.0 mm) or new arc gouging mode which maximizes output with up to 1/4 in. (6.3 mm) carbon rods.
  • Digital weld meters included.


Efficient AC Generator Power

  • 12.5 kW peak (11 kW continuous) 3-Phase 240V AC generator power. Will power industrial equipment such as a plasma cutter, pump or inverter welder.
  • 11.5 kW peak (10 kW continuous) 1-phase AC generator power for common construction tools.

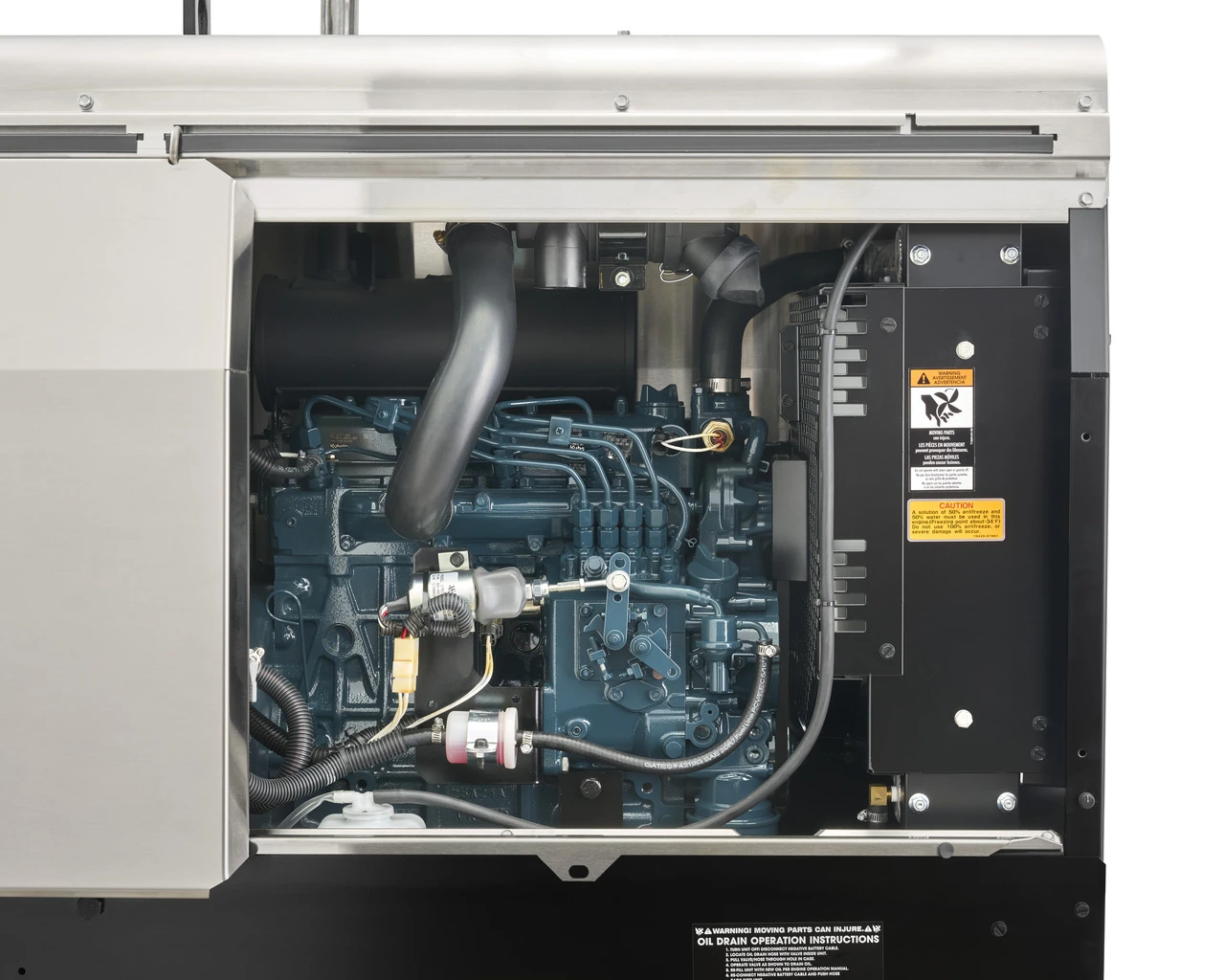

Industrial Kubota® Diesel Engine

  • 4 cylinder 1800 RPM Kubota® diesel engine runs smooth and quiet. Standard engine gauges allow you to monitor performance at a glance.
  • 20 gallon (76 liter) fuel tank for longer running time.


Innovative Service Access

  • Lockable, removable sliding engine access door provides ample space for engine and oil filter work without requiring a large clearance space on your truck. 55% more access than competitive product.
RATED OUTPUT
  • 300A/32V/100% IEC
  • 400A/23V/100% Max
OUTPUT RANGE
  • 30-400A DC
  • 40-300A Pipe
  • 20-250A DC TIG
  • 14-32V CV
  • 90-300A Gouge
GENERATOR OUTPUT
  • 3-PH: 12.5 kW peak, 11.0 kW cont. 1-PH: 11.5 kW peak, 10.0 kW cont.
TYPE OF ENGINE
  • Kubota V1505 EPA Tier 4
HP AND SPEED
  • 22@1800
CYLINDERS
  • 4
DIMENSIONS (H X W X D) 35.9 in x 25.3 in x 60 in (913 mm x 642 mm x 1524 mm)
NET WEIGHT 1035.00 (469.48 kg)
